Low-voltage Electrical Epoxy Resin For Sealing And Connecting Insulation

Brand Name : wenyou

Model Number : 8516L

Certification : ISO9001, ISO14001, SGS, and UL

Place of Origin : China

MOQ : 20kg/pail as sample

Price : Negotiable

Payment Terms : Normally L/C, T/T

Supply Ability : Plenty of raw material in stock

Delivery Time : 7 -10 work days

Packaging Details : 20kg/pail, 220kg/barrel, 1200kg/tank

Classification : Two-component saturated cyclic epoxy resin

Usage : Sealing and connecting insulation

Application : Low-voltage electrical applications, electronics, cable insulation, bonding, sealing, etc.

Appearance of epoxy resin : Light yellow transparent viscous liquid

Appearance of hardener : Light yellow to slightly yellow liquid

Viscosity at 25°C : 1000 - 3000mPa.s

Density at 25°C : 1.15 - 1.19g/cm3

Vapor Pressure at 25°C : ＜ 0.01Pa

Flash point : Around 110°C

Description : Low-voltage electrical epoxy Resin for sealing and connecting insulation

Contact Now

Brief Introduction



Low-voltage electrical epoxy Resin for sealing and connecting insulation
LE-8516L is a modified cycloaliphatic epoxy resin.
LH-8516L is a liquid modified anhydride hardener.



Applications



Low-voltage electrical applications, electronics, cable insulation, bonding, sealing, etc. For example, sealing and connecting insulation products, current and voltage transformers, etc.



Processing Methods



Conventional gravity casting process under vacuum.
Production process is adjustable according to client’s present production methods.



Properties



Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature. Suitable for casting processes. Excellent UV resistance, excellent resistance to thermal shock, excellent environmental resistance, and superior mechanical and electrical properties.



Formulation



Epoxy resin LE-8516L 100 pbw
Hardener LH-8516L 100 pbw
Filler Silica Powder 250-4350 pbw
Color paste LC series * Appropriate
Accelerator
LZ-622
2-4 pbw



Package Image



Low-voltage Electrical Epoxy Resin For Sealing And Connecting Insulation



Shipment Image

Low-voltage Electrical Epoxy Resin For Sealing And Connecting Insulation

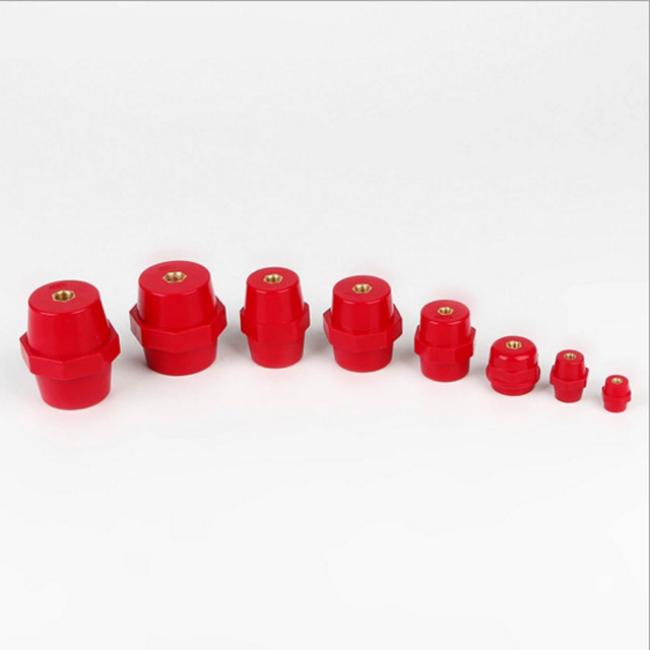

Example application image



Low-voltage Electrical Epoxy Resin For Sealing And Connecting Insulation
